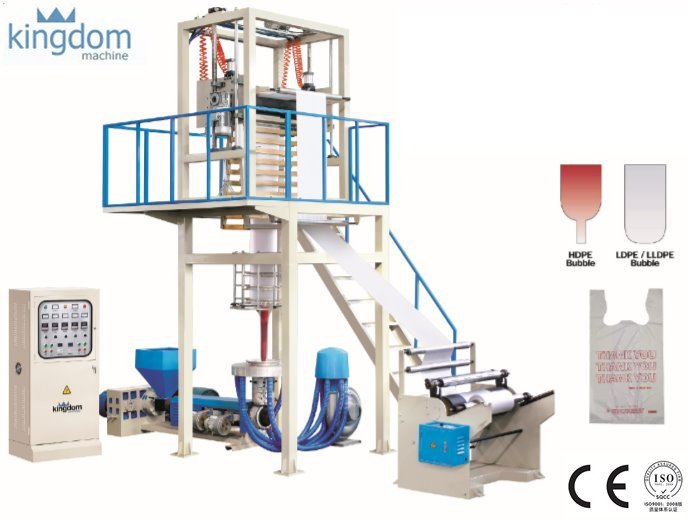

Mesin Blow Film Polyethene
Mesin Blow Film Polyethene

Use:

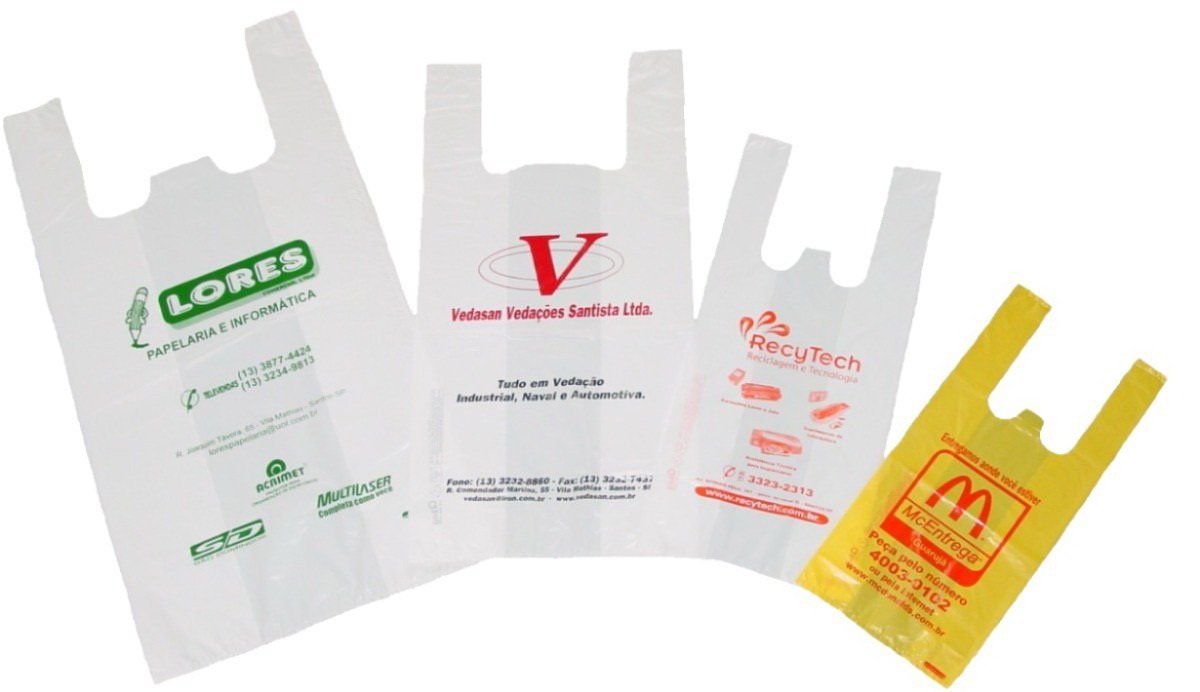

In the film blowing machine,cylinder and screw are made of quality alloy steel that have been nitrized and processed in a precision way. Hence it is sound in hardness, durable in corrosion resistance. The specially-designed screw is of sound quality in plasticizing, which helps increase the production capacity. It is applied to blowing the plastic films like low density polytene (LDPE), high density polytene(HDPE) and linear low density polytene (LLDPE). It is widely applied to producing the packing bags for foodstuff, clothing, rubbish bag and vest ones.

Main Technical Parameter:
Model
SJ-A50
SJ-A55
SJ-A65
SJ-A65-1
Diameter of screw
50mm
55mm
65mm
65mm
Diameter of film(mm)

100-600

200-800

300-1000
400-1200
Single-face Thickness of film(mm)
0.01-0.10
0.01-0.10
0.01-0.10
0.01-0.10

Max.Extrusion(Kg/h)

35

50

65
80
L/D
28:1
28:1
28:1
28:1
Power of main moto(kw)
7.5-11
11-15
18.5-22
22
Power of Tracion main motor
1.1kw
1.1 kw
1.5 kw
1.5 kw
Heating Power(kw)
11
13
19
21
Outline diameter(m)
4.8*1.9 *3.5
5.5*2.1 *3.8
6.5*2.3 *4.2
6.5 *2.5*4.6
Weight(T)
1.5T
2T
2.3T
2.6T



Optional Equipments:
1)Auto Loader
2)Air Compressor
3)Rotary Die Head
4)Double Side Winder
5)Up and Down
6)Embossing Cylinder
